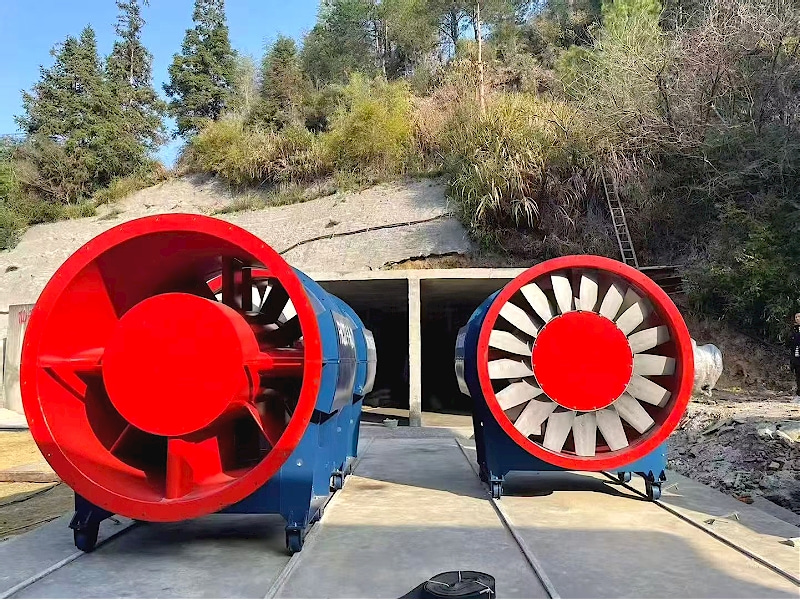

FBCDZ-6-NO.20  Coal Mine Explosion-proof Counter-rotating Axial Flow Ventilation Fan

Product Description

The FBCDZ-6-NO.20  Coal Mine Explosion-proof Counter-rotating Axial Flow Ventilation Fan is a cutting-edge engineered system designed for critical ventilation applications in coal mining operations. This Class I, Division 1 certified equipment features a dual-motor, counter-rotating axial design with a nominal impeller diameter of 600 mm (designated by "6" in the model). The robust cast aluminum alloy impellers and specialized anti-static polymer components ensure compliance with ATEX and IECEx standards for explosive atmospheres. Its integrated airflow control system includes variable frequency drive (VFD) compatibility for precision regulation from 15 m³/s to 40 m³/s under static pressures up to 3.5 kPa.

Primary Applications

This ventilation system addresses three critical operational requirements in coal mines:

1. **0.8% vol in working sections
2. Dust Suppression: Creates required air velocities (0.25-3.0 m/s) for effective respirable dust control
3. Thermal Management: Provides up to 120,000 kJ/hr of heat removal capacity in deep mining applications
4. Emergency Ventilation: Delivers 30-second reversal capability during fire events per MSHA 30 CFR §75.311 standards

Technical Advantages

• Dual-Motor Reliability: Independent 18.5 kW asynchronous motors with Class F insulation (IP66 rated) provide redundant operation
• Aerodynamic Efficiency: 82% peak efficiency optimized blade profiles (NACA 65-Series airfoils)
• Noise Control: Integrated silencer maintains sound pressure levels below 85 dB(A) at 3m distance
• Corrosion Resistance: ASTM G85-compliant salt spray coating withstands 2000+ hours exposure
• Smart Monitoring: Embedded IoT sensors track vibration (<4.5 mm/s RMS), temperature (Class B limits), and performance metrics

Technical Specifications

| Parameter | Value | |-----------|-------| | Airflow Range | 15-40 m³/s | | Static Pressure | 1.8-3.5 kPa | | Power Supply | 380V/660V 18.5 kW × 2 (IC411) | | Weight | 980 kg (excluding ducting) | | Certification | Ex db I Mb (IEC 60079-0:2023) |

Q&A Section

Q: What distinguishes the counter-rotating design from conventional axial fans?
A: The dual impeller configuration eliminates stator blades, reducing turbulence-induced energy losses by 18-22% compared to single-stage designs. The opposing rotation creates additive static pressure while maintaining axial flow direction, achieving 12-15% higher pressure coefficients than comparable single-rotor systems.

Q: the VFD integration enhance operational safety?
A: Our proprietary VFD interface enables:

• Soft-start functionality (0-100% ramp in 45s) to prevent mechanical shock
• Automatic methane-correlated airflow adjustment (0.1 m³/s precision)
• Real-time power factor correction (>0.95 across load range)
• Ground fault detection with <100ms response time

Engineering Validation

The FBCDZ-6-NO.20 has undergone rigorous validation through:

• Computational Fluid Dynamics (CFD) analysis confirming laminar flow at Reynolds numbers >200,000
• 2000-hour accelerated life testing simulating 5 years of continuous operation
• Explosion containment testing at 150% design pressure (5.25 kPa)
• Field performance verification in 14 mining operations across 6 countries

Conclusion

As mining depths increase and regulatory requirements tighten, the FBCDZ-6-NO.20 represents the convergence of safety engineering, aerodynamic efficiency, and operational intelligence. With its independently verified 98.7% operational availability and lifecycle cost 23% below conventional alternatives, this system delivers measurable ROI while meeting the most stringent global safety standards for underground coal operations.
