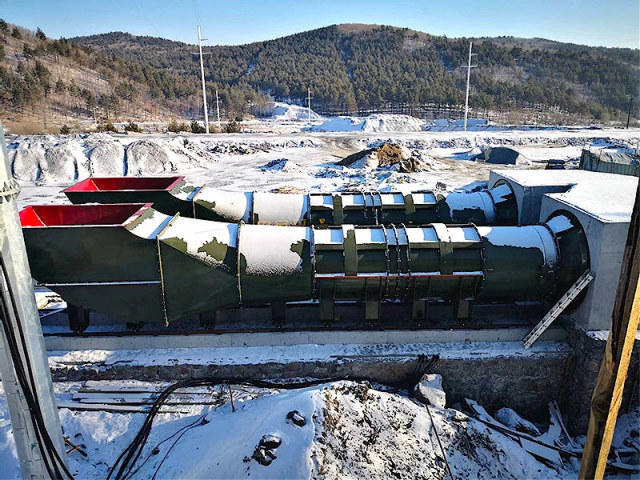

FBCDZ Type Mine Main Ventilation Fan

Product Description

The FBCDZ Type Mine Main Ventilation Fan can be used as the main ventilation fan in mines. Structurally, it adopts a three-dimensional twisted orthogonal blade and an aircraft airfoil design. The motor and impeller are directly connected. It is available in both explosion-proof and standard types. The product features high efficiency, low noise, and long service life.

Technical Advantages

1. Direct connection between the impeller and motor eliminates energy loss caused by the drive shaft, prevents transmission accidents, and simplifies foundation requirements.

2. The fan blade angle is adjustable, with two types: single-stage adjustment upon shutdown and staged adjustment upon shutdown.

3. The motor speed is adjustable.

4. Noise can be significantly reduced by adding a silencer and diffuser tower.

5. The product can be customized according to the mine's required airflow and resistance, resulting in significant energy savings.

6. The fan can reverse to change the airflow direction, eliminating the need for a separate reversing ventilation tunnel.

Technical Parameters

Model	Air Volume (m3/s)	Pressure (Pa)	Power (kW)	Unit Efficiency (%)
15	18.2~43.6	382~1690	2×37	≥87
16	22.1~52.9	435~1923	2×55	≥87
17	26.5~63.5	491~2171	2×75	≥87
18	31.5~75.4	551~2433	2×90	≥87
19	37.0~88.6	614~2711	2×132	≥87
20	43.2~103.4	687~3004	2×160	≥87
21	50.0~119.7	750~3312	2×200	≥87
12	10.7~27.6	698~1374	2×22	≥87
13	13.6~35.0	819~1613	2×37	≥87
14	17.0~43.8	950~1871	2×55	≥87
15	20.9~53.8	1091~2148	2×75	≥87
16	25.4~65.3	1241~2444	2×90	≥87
17	30.4~78.3	1400~2759	2×132	≥87
18	36.1~93.5	1570~3093	2×160	≥87
19	42.5~109.4	1750~3446	2×200	≥87
20	49.5~127.6	1939~3819	2×250	≥87
12	6.2~23.4	411~1815	2×18.5	≥87
13	7.9~29.8	482~2130	2×30	≥87
14	9.9~37.2	600~2470	2×37	≥87
15	12.2~45.8	682~2836	2×55	≥87
16	14.8~55.5	730~3227	2×75	≥87
17	17.8~66.6	825~3643	2×110	≥87
18	21.1~79.1	924~4087	2×132	≥87
19	23.8~92.0	1030~4560	2×185	≥87
20	28.9~108.5	1141~5042	2×200	≥87
21	33.5~125.6	1258~5560	2×287	≥87
22	38.5~144.4	1387~6100	2×355	≥87
12	7.6~22.0	333~1287	2×18.5	≥87
13	9.7~28.0	375~1500	2×30	≥87
14	12.1~35.0	487~1700	2×37	≥87
15	14.9~43.1	521~2000	2×55	≥87
16	18.0~52.3	592~2275	2×75	≥87
17	21.6~62.7	669~2569	2×110	≥87
18	25.7~74.4	750~2887	2×132	≥87
19	30.0~87.5	835~3209	2×185	≥87
20	35.2~102.0	925~3555	2×220	≥87
21	40.0~118.2	1020~3920	2×287	≥87
22	46.9~135.9	1120~4302	2×355	≥87
12	5.5～20.5	500～2200	2×30	≥87
13	7.0～26.5	600～2600	2×37	≥87
14	10.1～31.7	918～2888	2×55	≥87
15	12.4～39.0	1054～3315	2×75	≥87
16	15.0～47.3	1199～3772	2×110	≥87
17	18.0～56.8	1353～4258	2×132	≥87
18	21.4～67.4	1517～4774	2×185	≥87
19	25.1～79.3	1690～5319	2×220	≥87
20	29.3～92.5	1873～5893	2×250	≥87
21	33.9～107.0	2065～6497	2×355	≥87
12	7.0～19.2	377～1555	2×18.5	≥87
13	8.1～24.4	442～1835	2×30	≥87
14	10.1～30.5	513～2130	2×37	≥87
15	14.5～36.6	875～2335	2×55	≥87
16	17.6～44.4	916～2656	2×75	≥87
17	21.1～53.3	1035～2999	2×90	≥87
18	25.0～63.3	1160～3362	2×132	≥87
19	29.4～74.4	1292～3746	2×160	≥87
20	34.3～86.8	1432～4150	2×220	≥87
21	39.7～100.5	1579～4576	2×287	≥87
18	23.5~56.1	306~1350	2×37	≥87
19	27.6~66.0	341~1504	2×55	≥87
20	32.2~77.0	377~3334	2×75	≥87
21	37.3~89.1	416~1838	2×90	≥87
22	42.8~102.5	457~2017	2×110	≥87
23	48.9~117.1	499~2204	2×132	≥87
24	55.6~133.0	543~2400	2×160	≥87
25	62.9~150.4	589~2605	2×200	≥87
26	73.6~169.5	627~2710	2×250	≥87
16	18.9~48.7	688~1356	2×37	≥87
17	22.7~58.4	777~1531	2×55	≥87
18	26.9~69.3	871~1716	2×75	≥87
19	31.6~81.5	971~1912	2×90	≥87
20	36.9~95.1	1076~2119	2×110	≥87
21	42.7~110.1	1186~2336	2×160	≥87
22	49.1~126.6	1302~2563	2×200	≥87
16	11.4~42.8	434~1920	2×30	≥87
17	13.7~51.4	490~2165	2×45	≥87
18	16.3~61.0	549~2427	2×75	≥87
19	19.1~71.7	620~2704	2×90	≥87
20	22.0~83.6	695~2996	2×110	≥87
21	25.8~96.8	748~3303	2×132	≥87
22	29.7~111.3	821~3625	2×160	≥87
23	33.9~127.2	900~3962	2×200	≥87
24	38.5~144.5	976~4314	2×250	≥87
25	42.5~163.3	1060~4681	2×315	≥87
26	49.0~183.7	1146~5063	2×355	≥87
27	54.9~205.7	1236~5460	2×450	≥87
28	61.2~233.5	1329~5872	2×560	≥87
16	13.9~40.3	350~1352	2×37	≥87
17	16.7~48.0	397~1530	2×45	≥87
18	18.8~57.0	445~1711	2×75	≥87
19	23.3~67.5	496~1907	2×90	≥87
20	27.2~78.7	550~2140	2×110	≥87
21	31.0~91.5	606~2350	2×132	≥87
22	36.2~104.7	665~2556	2×160	≥87
23	41.3~119.7	727~2794	2×200	≥87
24	47.0~136.0	792~3042	2×250	≥87
25	53.1~153.7	850~3300	2×315	≥87
26	59.7~172.9	929~3570	2×355	≥87
27	66.9~193.6	1002~3850	2×450	≥87
28	74.6~215.9	1010~4141	2×560	≥87
16	9.0～37.4	550～2300	2×55	≥87
17	13.6～42.9	772～2428	2×55	≥87
18	16.1～50.9	865～2722	2×75	≥87
19	19.0～60.0	964～3033	2×110	≥87
20	22.1～69.8	1068～3360	2×132	≥87
21	25.6～87.8	1177～3705	2×160	≥87
22	29.5～92.9	1292～4066	2×200	≥87
23	33.7～106.2	1412～4444	2×250	≥87
24	38.2～120.7	1538～4839	2×315	≥87
25	43.2～136.4	1669～5250	2×315	≥87
26	48.6～153.4	1875～5679	2×450	≥87
27	54.4～171.8	1946～6124	2×450	≥87
28	60.7～191.6	2093～6586	2×710	≥87
16	11.6～34.5	400～1574	2×30	≥87
17	14.0～42.0	450～1777	2×45	≥87
18	18.9～47.8	661～1917	2×55	≥87
19	22.2～56.2	737～2136	2×75	≥87
20	25.9～65.5	816～2367	2×90	≥87
21	30.0～75.9	900～2609	2×132	≥87
22	34.5～87.2	988～2863	2×160	≥87
23	39.4～99.7	1087～3130	2×185	≥87
24	44.8～113.2	1176～3408	2×220	≥87
25	50.6～128.0	1276～3698	2×287	≥87
26	56.9～144.0	1387～3999	2×355	≥87
27	63.7～161.0	1488～4313	2×355	≥87
28	71.1～179.8	1600～4638	2×450	≥87
20	17.8～66.7	450～1950	2×55	≥87
21	20.6～77.2	475～2100	2×75	≥87
22	23.7～88.7	545～2304	2×90	≥87
23	27.0～101.4	595～2519	2×110	≥87
24	30.7～115.2	621～2742	2×132	≥87
25	34.7～130.2	695～2976	2×160	≥87
26	39.1～146.5	728～3440	2×200	≥87
27	43.7～164.0	786～3471	2×220	≥87
28	48.8～183.0	845～3733	2×315	≥87
29	54.2～203.3	910～4004	2×355	≥87
30	60.0～225.0	1000～4285	2×400	≥87
31	66.2～248.3	1050～4675	2×450	≥87
32	72.8～273.1	1100～4875	2×560	≥87
33	79.9～299.5	1174～5185	2×630	≥87
20	21.7～62.7	350～1343	2×55	≥87
21	25.0～73.0	385～1487	2×75	≥87
22	28.8～83.5	405～1625	2×90	≥87
23	32.9～95.4	462～1776	2×110	≥87
24	37.4～108.4	500～1934	2×132	≥87
25	42.3～122.5	546～2098	2×160	≥87
26	47.6～137.8	560～2270	2×200	≥87
27	53.3～154.3	637～2447	2×220	≥87
28	59.4～172.1	685～2632	2×315	≥87
29	66.0～191.2	735～2870	2×355	≥87
30	73.0～211.7	786～3022	2×400	≥87
31	87.7～233.6	840～3250	2×450	≥87
32	88.7～256.9	895～3438	2×560	≥87
33	97.3～287.0	952～3656	2×630	≥87
20	17.6～55.7	679～2136	2×75	≥87
21	20.4～64.4	748～2355	2×90	≥87
22	23.5～74.1	821～2585	2×110	≥87
23	26.8～84.7	898～2825	2×132	≥87
24	30.5～96.2	978～3076	2×160	≥87
25	34.5～108.7	1061～3338	2×185	≥87
26	38.8～122.3	1147～3610	2×250	≥87
27	43.4～137.0	1237～3893	2×250	≥87
28	48.4～152.8	1331～4187	2×315	≥87
29	53.8～169.7	1427～4491	2×355	≥87
30	59.5～187.9	1527～4876	2×450	≥87
31	57.0～220.0	1200～5400	2×560	≥87
32	72.3～228.0	1738～5468	2×560	≥87
33	67.0～260.0	1350～6050	2×710	≥87
34	86.7～273.4	1962～6173	2×870	≥87
35	81.0～315.0	1550～6750	2×900	≥87
36	102.9～324.7	2199～6921	2×1000	≥87
21	23.9～60.5	572～1659	2×75	≥87
22	27.5～69.5	628～1820	2×75	≥87
23	31.4～79.5	686～1990	2×90	≥87
24	35.7～90.3	747～2166	2×110	≥87
25	40.3～102.1	811～2351	2×160	≥87
26	45.4～114.8	877～2542	2×185	≥87
27	50.8～128.6	946～2742	2×200	≥87
28	56.7～143.4	1017～2949	2×250	≥87
29	63.0～159.3	1091～3163	2×250	≥87
30	69.7～176.4	1168～3385	2×315	≥87
31	67.3～203.4	930～3757	2×400	≥87
32	84.6～214.0	1329～3851	2×450	≥87
33	81.2～242.4	1077～4257	2×560	≥87
34	101.5～256.7	1500～4348	2×560	≥87
35	100.0～290.0	1211～4790	2×870	≥87
36	120.4～304.7	1682～4874	2×710	≥87
34	72.5～272.0	890～3796	2×400	≥87
35	79.1～296.8	900～4023	2×500	≥87
36	86.1～322.9	963～4256	2×560	≥87
37	93.5～348.6	1010～4510	2×630	≥87
38	101.3～379.8	1073～4742	2×710	≥87
39	109.5～410.6	1100～4995	2×870	≥87
40	118.1～440.0	1189～5254	2×900	≥87
34	88.4～256.0	697～2700	2×400	≥87
35	96.4～279.2	738～2837	2×500	≥87
36	104.9～303.8	781～3000	2×560	≥87
37	113.9～329.9	825～3170	2×630	≥87
38	120.0～357.3	830～3344	2×710	≥87
39	133.4～386.3	917～3522	2×870	≥87
40	140.0～416.8	964～3705	2×900	≥87
24	25.3～79.9	674～2122	2×110	≥87
25	28.6～90.3	732～2302	2×110	≥87
26	32.2～101.6	791～2490	2×132	≥87
27	36.1～113.8	853～2685	2×160	≥87
28	40.2～126.9	918～2888	2×200	≥87
29	44.7～140.9	985～3098	2×200	≥87
30	49.5～156.0	1054～3315	2×250	≥87
31	49.0～187.0	820～3700	2×315	≥87
32	60.0～189.4	1199～3772	2×355	≥87
33	53.0～209.0	1050～4300	2×400	≥87
34	72.0～227.1	1353～4258	2×450	≥87
35	62.5～260.0	1150～4870	2×500	≥87
36	85.5～269.6	1517～4774	2×560	≥87
37	79.5～305.0	1250～5300	2×630	≥87
38	100.5～317.1	1690～5319	2×870	≥87
39	95.0～360.0	1387～5940	2×900	≥87
40	171.2～370.0	1873～5893	2×1000	≥87
24	26.0～78.4	385～1553	2×75	≥87
25	33.5～84.8	559～1621	2×110	≥87
26	37.7～95.3	605～1754	2×110	≥87
27	42.2～106.8	652～1891	2×132	≥87
28	47.1～119.1	702～2034	2×160	≥87
29	52.3～132.3	753～2182	2×160	≥87
30	57.9～146.5	876～2335	2×200	≥87
31	57.5～168.0	635～2590	2×250	≥87
32	70.3～177.7	916～2656	2×250	≥87
33	67.5～203.8	743～2936	2×315	≥87
34	84.3～213.2	1035～2999	2×315	≥87
35	87.5～240.5	835～3303	2×450	≥87
36	100.0～253.1	1160～3362	2×450	≥87
37	95.1～287.3	934～3690	2×560	≥87
38	117.6～297.6	1292～3746	2×560	≥87
39	112.5～342.5	1037～4160	2×710	≥87
40	137.2～347.2	1432～4150	2×710	≥87
