High-Pressure Centrifugal Fans: Powering Industrial Efficiency and Reliability

Introduction

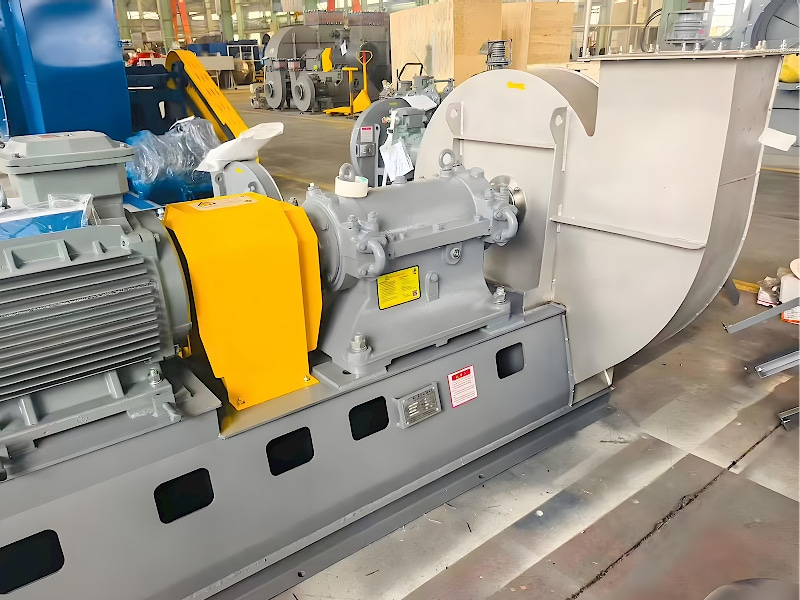

High-pressure centrifugal fans are engineered systems designed to generate significant air or gas flow against high system resistance. Unlike axial fans, which move air parallel to the fan shaft, centrifugal fans utilize a rotating impeller to accelerate air radially outward, converting kinetic energy into high static pressure. This fundamental principle allows them to overcome substantial pressure drops in complex ducting, filtration systems, or dense process materials. Key components include an impeller with forward-curved, backward-curved, or radial blades housed within a robust spiral casing (volute), an efficient drive system, and often integrated control mechanisms. Their design prioritizes durability, energy variable-speed configurations), and the ability to handle demanding industrial environments, including those with elevated temperatures or mildly corrosive particulates.

Applications: Driving Critical Processes Across Industries

The capability of high-pressure centrifugal fans to deliver consistent, high-pressure airflow makes them indispensable in numerous industrial sectors:

• Material Handling & Pneumatic Conveying: Essential for transporting bulk solids (like grains, plastics, or cement powder) through pipelines by creating the necessary vacuum or pressure differentials.
• Combustion Air & Forced Draft: Supplying high-pressure air to boilers, furnaces, and kilns to ensure efficient fuel combustion and optimal thermal processes.
• Dust & Fume Collection: Powering central dust collection systems where air must be pulled through filters (e.g., baghouses, cartridge filters) against significant resistance to capture fine particulates effectively.
• Process Drying & Cooling: Providing controlled, high-velocity air streams for drying applications (textiles, paper, food products) or cooling hot materials on conveyor belts.
• HVAC for Industrial Facilities: Handling the high static pressure requirements of large-scale industrial air conditioning and ventilation systems with extensive duct networks and filtration stages.
• Aeration & Wastewater Treatment: Supplying oxygen to biological treatment processes in tanks and lagoons, requiring fans to overcome both water depth and diffuser resistance.
• Electrostatic Precipitators: Generating the high-volume flow needed to pass flue gases through electrostatic fields for particulate removal in power plants and heavy industry.

Q&A: Addressing Key Considerations

• Q: What distinguishes a high-pressure centrifugal fan from a standard centrifugal fan? A: While both operate on the centrifugal principle, high-pressure models are specifically engineered with impeller designs (often radial or backward-curved blades), stronger construction materials, and optimized casing geometries to generate significantly higher static pressures—typically exceeding 1.5 kPa (approx. 6 inches water gauge) and often reaching 10 kPa or more. They are built to withstand the stresses associated with these pressures.

• Q: How important is fan efficiency, and how is it achieved? A: Efficiency is paramount due to the significant energy consumption of industrial fans. Backward-curved blade impellers generally offer the highest efficiency within their operating range. Pairing the fan with a properly sized variable frequency drive (VFD) allows speed adjustment to match actual system demand, dramatically reducing energy use during partial-load conditions compared to constant-speed operation with dampers.

• Q: What factors are critical when selecting a high-pressure centrifugal fan? A: Key selection criteria include: * Required airflow rate (CFM or m³/h). * Required static pressure (inches WG or kPa) at the operating point. * Nature of the gas stream (temperature, density, presence of moisture, abrasives, or corrosives). * Desired operating efficiency and control strategy (e.g., VFD). * Space constraints and installation requirements (noise levels may also be a factor). * Compliance with relevant safety and industry standards (e.g., AMCA, ATEX if applicable).

• Q: What maintenance is typically required? A: Regular maintenance includes visual inspections for), checking and lubricating bearings according to manufacturer specifications, inspecting drive alignment and tension, cleaning accessible components to prevent buildup affecting balance or airflow, and monitoring vibration levels. Predictive maintenance using vibration analysis can help identify issues early. Rugged construction minimizes downtime.
