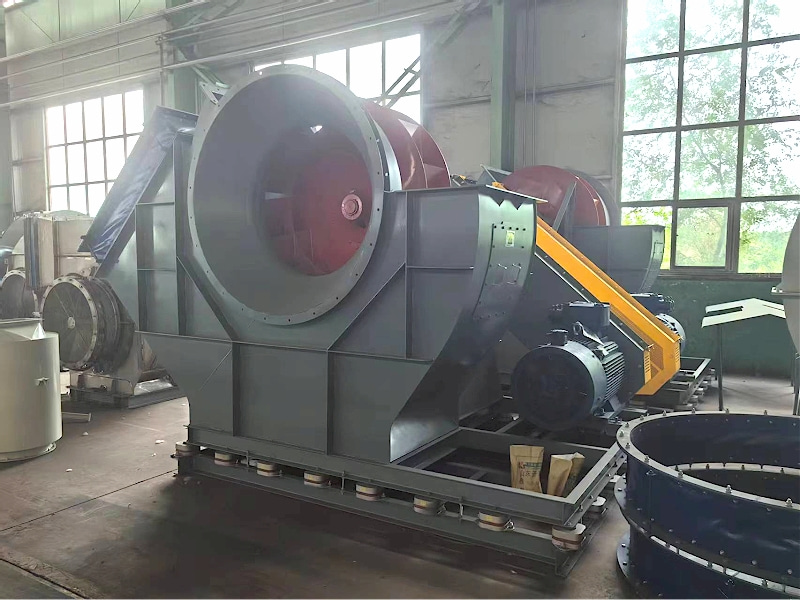

Secondary Air Fans for Power Plants

Secondary Air Fans in Power Plants: Enhancing Combustion Efficiency and Environmental Performance

Introduction

Secondary Air Fans are critical components within the thermal power generation infrastructure, specifically engineered to optimize the combustion process in boilers. These fans supply precisely controlled air streams to the combustion zone, distinct from primary air which transports pulverized fuel. Their design focuses on delivering high volumes of air at specific pressures to meet rigorous operational demands, ensuring stable and efficient boiler operation.

Primary Applications and Functionality

1. Combustion Optimization: Secondary air facilitates complete combustion by supplying oxygen to the fuel bed after initial ignition (provided by primary air). This staged combustion approach minimizes unburnt carbon losses and maximizes thermal efficiency.
2. Emission Control: By enabling controlled air staging techniques (e.g., Over Fire Air - OFA systems), secondary air fans play a vital role in reducing nitrogen oxide (NOx) emissions. They help create reducing and oxidizing zones within the furnace, mitigating NOx formation.
3. Furnace Aerodynamics: Secondary air jets influence flame shape, stability, and penetration depth within the furnace. Properly directed secondary air ensures uniform heat distribution, prevents slagging, and maintains optimal furnace temperatures.
4. Fuel Flexibility Support: For plants utilizing diverse fuels (coal, biomass, waste-derived fuels), secondary air systems can be adjusted to accommodate varying combustion characteristics and fuel reactivity.

Key Advantages of Modern Secondary Air Fan Systems

1. Enhanced Combustion Efficiency: Precise control over secondary air flow and distribution leads to more complete fuel burnout, directly improving boiler efficiency and reducing fuel costs.
2. Superior Environmental Compliance: Integral to Low-NOx combustion strategies, modern secondary air systems significantly reduce emissions, standards, IED requirements).
3. Operational Reliability: Engineered for robustness with features like heavy-duty impellers, wear-resistant linings (for abrasive flue gas paths), and high-temperature capabilities, these fans ensure long service life and minimal unplanned downtime. Advanced control systems (often integrated with DCS) allow for responsive adjustments to load changes.
4. Adaptability and Flexibility: Variable Frequency Drives (VFDs) enable precise modulation of air flow based on real-time boiler demand, optimizing performance across varying loads and fuel types. Designs cater to specific boiler configurations (tangential, front-wall, opposed-wall firing).
5. **Reduced Life efficiency translates to lower power consumption. Durable construction minimizes maintenance requirements and spare part consumption, contributing to a lower Total Cost of Ownership (TCO).

Frequently Asked Questions (FAQs)

Q: What is the fundamental difference between Primary Air (PA) fans and Secondary Air (SA) fans? A: PA fans primarily transport pulverized fuel to the burners and provide the initial air for ignition. SA fans supply the bulk of the combustion air required for complete burnout, introduced above or around the primary combustion zone, often in a staged manner for efficiency and emission control.

Q: How do secondary air fans contribute to NOx reduction? A: By implementing air staging (like OFA), secondary air is injected higher up in the furnace. This creates an initial fuel-rich, oxygen-deficient zone below, which suppresses thermal NOx formation. The secondary air then completes combustion in an oxidizing zone, but under conditions where peak temperatures (a key factor in NOx formation) are lower.

Q: What maintenance considerations are typical for secondary air fans? A: Key considerations include regular inspection of impellers for erosion or corrosion (especially when handling fly ash-laden gas recirculation), checking bearing lubrication and condition, monitoring vibration levels, and inspecting inlet dampers/guide vanes for proper operation. Predictive maintenance techniques like vibration analysis are highly recommended.

Q: Can secondary air systems handle the use of alternative fuels like biomass? A: Yes, but the system design must account for the specific fuel properties. Biomass often has higher volatile matter and may require adjustments to air distribution patterns or flow rates. Modern SA systems with good controllability can be adapted to manage such variations effectively.

Q: What is the typical ROI for upgrading an older secondary air fan system? A: Return on Investment (ROI) depends on factors like baseline efficiency, fuel costs, emission penalties, and downtime costs. Upgrades often focus on VFDs for energy savings (reducing fan power by 30-60% at partial loads gain), or hardware upgrades for reliability. Payback periods can range from 1 to 5 years based on operational hours and savings magnitude.
